Developer Guide
Acknowledgements
Design & implementation
Overview

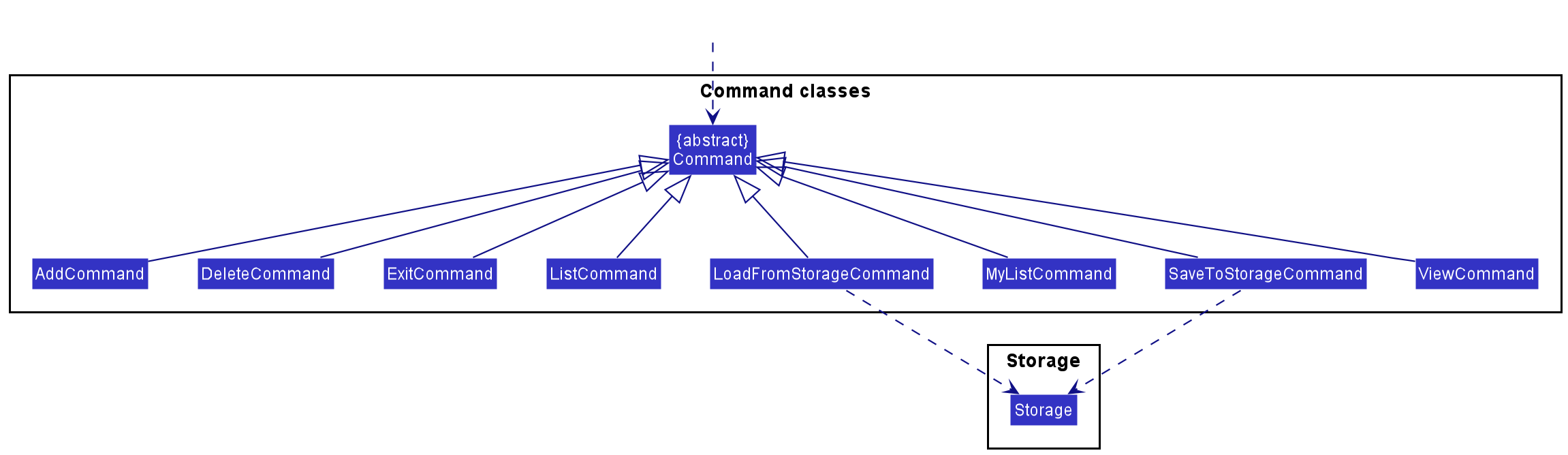

Command component

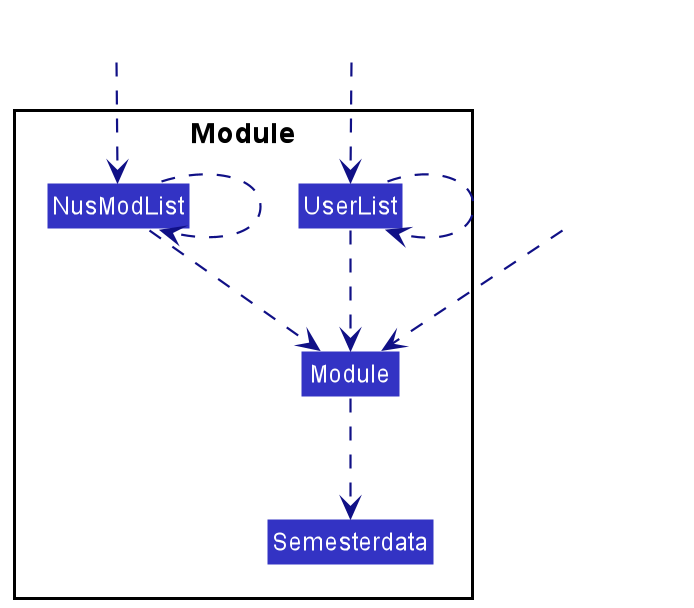

Module component

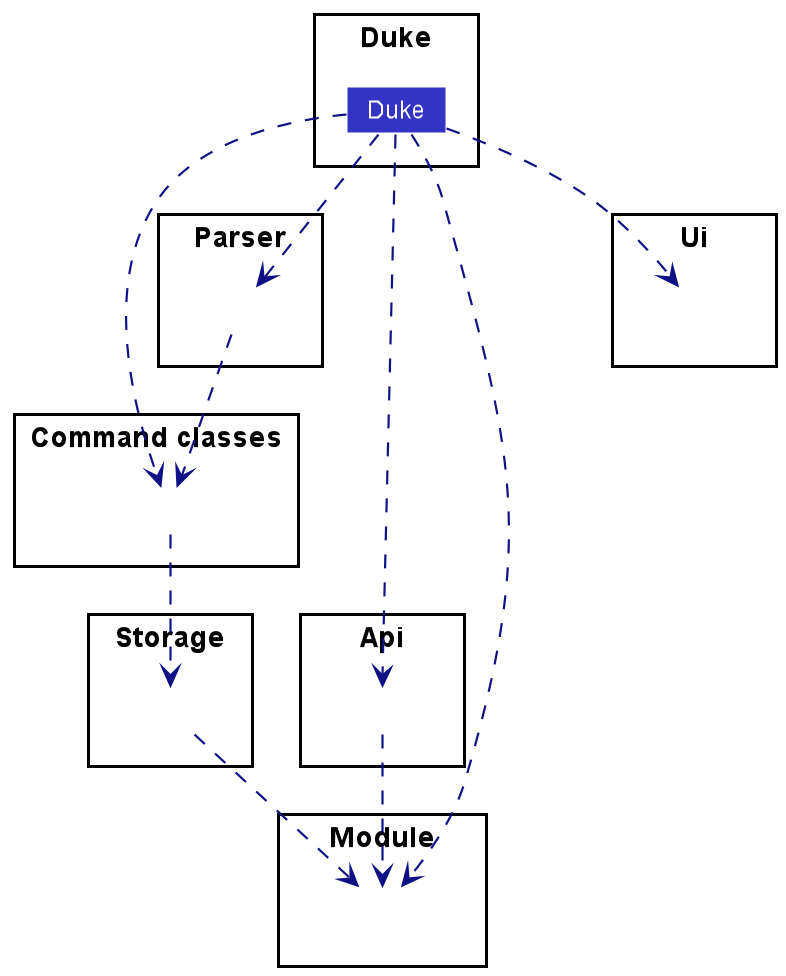

The Diagrams above explains the high-level design of the App.
Given below is a quick overview of main components and how they interact with each other.
Main components of the App
Duke is responsible for,
At app launch: Initializes the components in the correct sequence, and connects them up with each other. At shut down: Shuts down the components.
The App consists of a few components.
UI: The UI of the App.
Parser: Parse instruction given by the user.
Api: Extract data from the NUSMOD API.
Storage: Reads data from, and writes data to, the hard disk.
Module: Contains information for Modules.
Command: The command executor.
How the components interact with each other

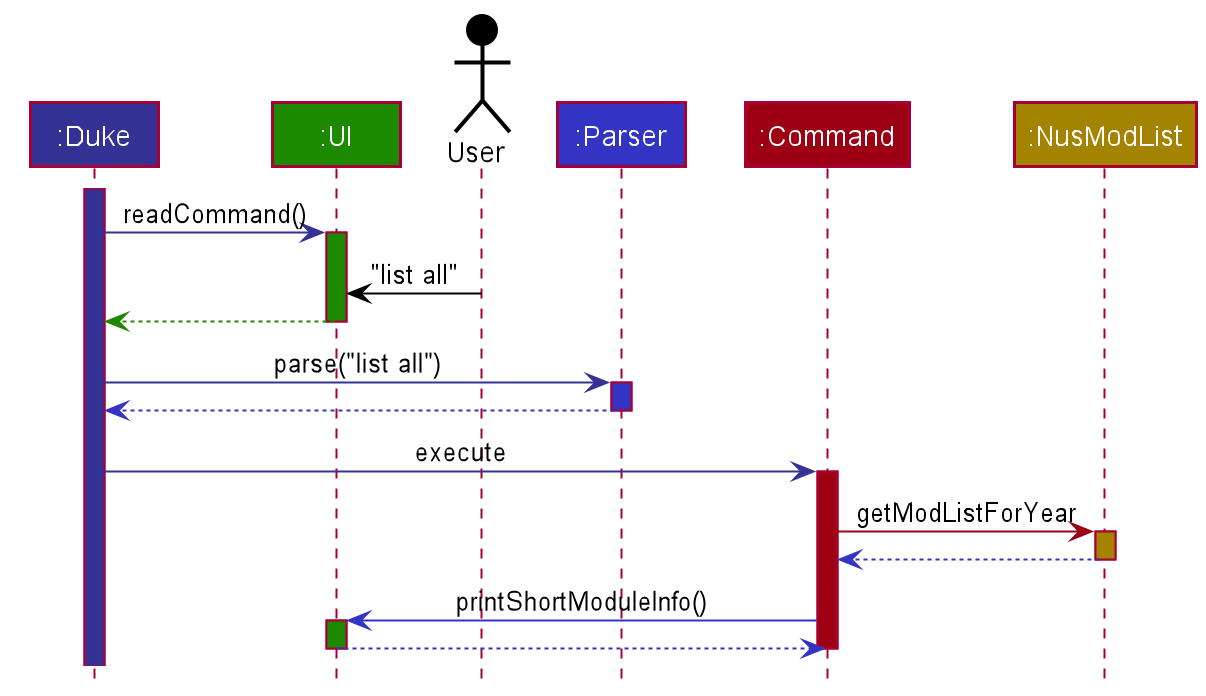

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command list all.
Product scope
Target user profile
NUS students who take modules, and prefer CLI.
Lily is a part-time NUS student studying cyber security while working a full time job. She spent most of her time working during the weekdays and studying on the weekends. This causes her to not have enough time to spend with her family and friends during the school period. She also has a lot of friends from different groups and during the school holiday period, she spent lots of time catching up with her friends and family. During the second year of school, she spent quite a lot of time planning not just her next semester module, but her next year’s module as well to ensure she got the module she wanted. She also does not like to create an account online as she is a cyber security student, she practices avoiding using the same password twice and giving out unnecessary information.
Value proposition
Module planning is a complex task which requires planning. Our app aims to let NUS students plan their upcoming modules more easily.
User Stories
| Version | As a … | I want to … | So that … |
|---|---|---|---|
| v1.0 | new user | see usage instructions | I can refer to them when I forget how to use the application |
| v1.0 | new user | download NMP for free from github | I will not incur any costs |
| v2.0 | user | view a specific module | I can view module information that is relevant to me |
| v2.0 | user | view my list of added modules | I can do a review of what modules I’ve been interested in |
| v2.0 | user | remove modules from my list of added modules | my list will only contain the modules that I wanted |
| v2.0 | user | view all modules offered for the term | I can bid for my modules |
Non-Functional Requirements
- Each request should be processed within 3 seconds.
- Program to function properly on different operating systems.
- Program should have a 95 percent chance that the component can be fixed in 24 hours.
- Program should be available all time during a month.
- Program should not experience critical failure.
